UCT308-24 bearing

Why choose us
HBTA-Always stands at the user's point of view to provide users and customers with the best solutions and services.The company has passed ISO 9001:2015 quality management system certification.

UCT308-24 bearing

Send Inquiry

PDF

Description
Technical diameters

Bearing Unit No. :UCT308-24

Shaft Dia

in :1 1/2

mm :40

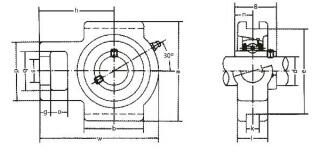

Dimensions（mm）

o :22

g :17

p :83

q :50

s :32

b :89

k :18

e :112

a :124

w :162

j :50

l :34

r :62

h :100

Bi :52

n :19

m :33

Bearing No. :UCT308-24

Housing No. :T308

Weight(kg) :3

① It can bear combined axial and radial loads
② It has compact structure
③ The spherical seat hole is a little helpful for the centring of long shaft
④ Large mounted bearings may be structured with split type for convenient installation and maintenance
