UCF209 bearing

Why choose us
HBTA-Always stands at the user's point of view to provide users and customers with the best solutions and services.The company has passed ISO 9001:2015 quality management system certification.
UCF200 Series
HeBei TuoAn Bearing Co.,Ltd

UCF209 bearing

  • UCF200 Series
  • UCF200 Series
  • UCF200 Series
Type(With House) :UCF209

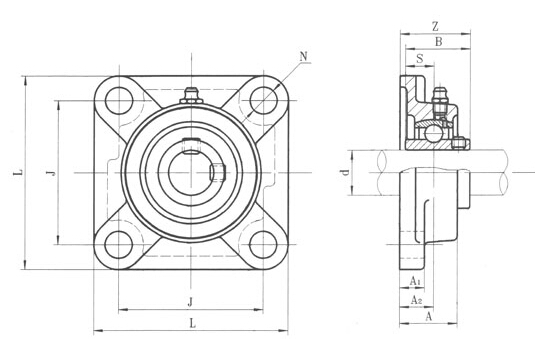

Dimensions(mm)
d :45
L :137
A :38
J :105
A1 :16
A2 :22
N :16
Z :52.2
B :49.2
S :19
Bolt Dimensions :M14
Bearing Type :UC209
House Type :F209
Weight (With House)
(Kg) :2.2

① It can bear combined axial and radial loads
② It has compact structure
③ The spherical seat hole is a little helpful for the centring of long shaft
④ Large mounted bearings may be structured with split type for convenient installation and maintenance
