Single Row Full Complement Cylindrical Roller Bearings

Send Inquiry

Description
Technical diameters

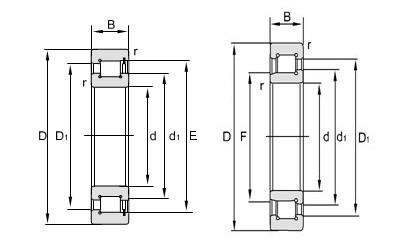

Inquiry	PDF	Bearing NO.	Boundary dimensions(mm)					Basic load ratings(kN)		Limiting speed(rpm)		Abutment and fillet dimensions(mm)			Weight (kg)
Inquiry	PDF	Bearing NO.	d	D	B	r 1.2min	r3.4min	Cr	Cor	Grease	Oil	da max	Da max	ra max	Refer
		NCF2920V	100	140	24	1.1	1	132	224	1000	2200	106.5	133.5	1	1.15
		NCF3020V	100	150	37	1.5	1	242	375	950	2000	108	142	1.5	2.2
		NCF2220V	100	180	46	2.1	2.1	380	530	850	1800	111	169	2	5.1
		NJG2320VH	100	215	73	3	-	704	900	600	1200	113	202	2.5	13
		NCF2922V	110	150	24	1.1	1	140	250	900	1900	116.5	143.5	1	1.25
		NCF3022V	110	170	45	2	1	330	500	850	1800	119	161	2	3.65
		NCF2222V	110	200	53	2.1	2.1	440	600	750	1600	122	188	2	7.15
		NJG2322VH	110	240	80	3	-	858	1060	560	1100	123	227	2.5	17.5
		NCF2924V	120	165	27	1.1	1	172	290	850	1800	126.5	158.5	1	1.7
		NCF3024V	120	180	46	2	1	341	550	800	1700	129	171	2	3.95
		NCF2224V	120	215	58	2.1	2.1	512	735	700	1500	132	203	2	9.05
		NJG2324VH	120	260	86	3	-	935	1200	530	1000	133	247	2.5	22.5
		NCF2926V	130	180	30	1.5	1.1	205	360	750	1600	138	172	1.5	2.3
		NCF3026V	130	200	52	2	1	429	695	700	1500	139	191	2	5.8
		NCF2226V	130	230	64	3	3	605	880	670	1400	143	217	2.5	11
		NJG2326VH	130	280	93	4	-	1080	1430	500	950	146	264	3	28
		NCF2928V	140	190	30	1.5	1.1	220	390	700	1500	148	182	1.5	2.4
		NCF3028V	140	210	53	2	1	468	750	670	1400	149	201	2	6.1
		NCF2228V	140	250	68	3	3	693	1020	630	1300	153	237	2.5	14.5
		NJG2328VH	140	300	102	4	-	1230	1660	450	850	156	284	3	35.5
		NCF1830V	150	190	20	1.1	1	108	200	700	1500	157.5	182.5	1	1.3
		NCF2830V	150	190	24	1.1	1	145	285	700	1500	157.5	182.5	1	1.7
		NCF2930V	150	210	36	2	1.1	286	500	670	1400	159	201	2	3.85
		NCF3030V	150	225	56	2.1	1.1	539	865	630	1300	161	214	2	7.5
		NCF2230V	150	270	73	3	3	792	1180	600	1200	163	257	2.5	18.5
		NJG2330VH	150	320	108	4	-	1450	1930	430	800	166	177	3	42.5
		NCF1832V	150	200	20	1.1	1	112	212	670	1400	167.5	192.5	1	1.45
		NCF2832V	160	200	24	1.1	1	147	305	670	1400	167.5	192.5	1	1.65
		NCF2932V	160	220	36	2	1.1	297	540	630	1300	169	211	2	4.05
		NCF3032V	160	240	60	2.1	1.1	583	950	600	1200	171	229	2	9.1
Previous12 3 4 5 6 Next

Features:

1. The rollers and raceways are in line contact or trimmed line contact. They have large radial load-bearing capacity and are suitable for withstanding heavy loads and impact loads.

2. The friction coefficient is small, suitable for high speeds, and the limit speed is close to that of deep groove ball bearings.

3. N type and NU type can move axially, can adapt to changes in the relative position of the shaft and housing caused by thermal expansion or installation errors, and can be used as free end supports.

4. The processing requirements for the shaft or seat hole are relatively high. After the bearing is installed, the relative deflection of the outer ring axis must be strictly controlled to avoid contact stress concentration.

5. The inner or outer ring can be separated for easy installation and removal
